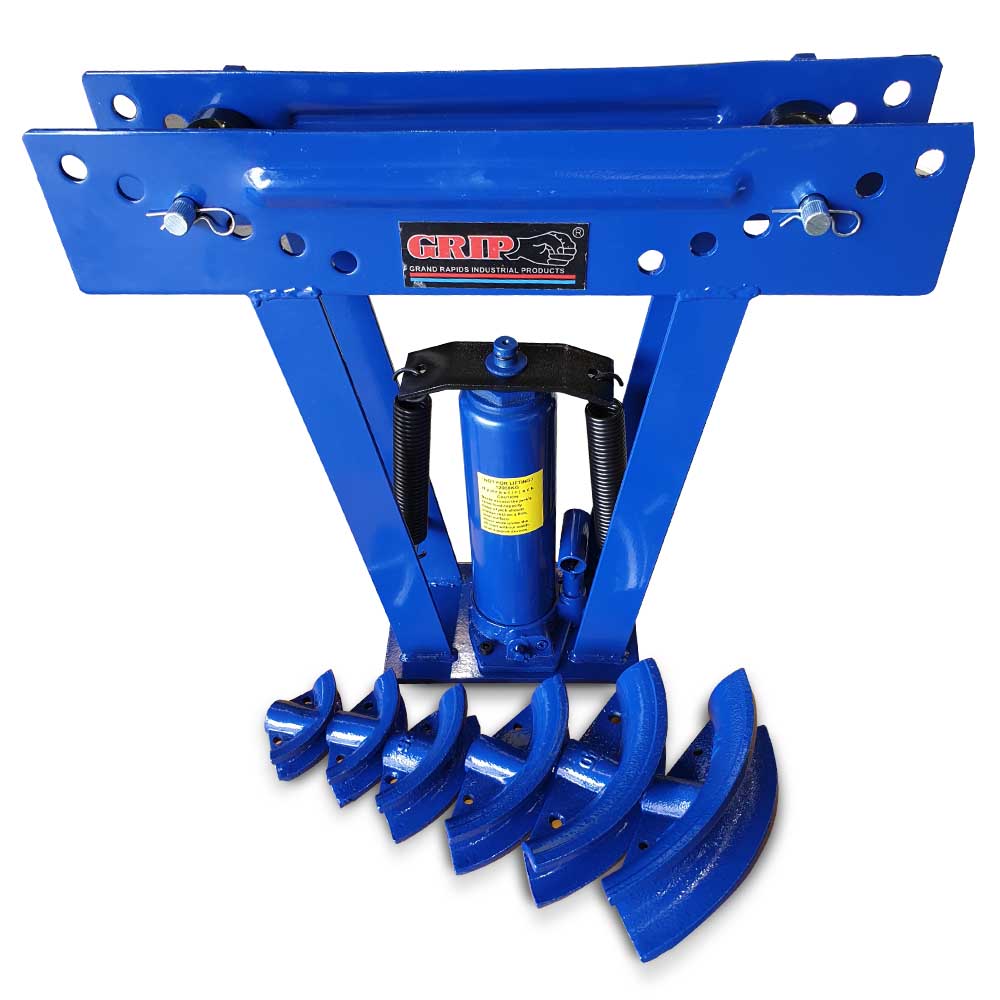

Grip 81112 12000kg (12T) Hydraulic Steel Pipe Bender

Hydraulic pipe bender with a rugged high-grade steel frame for bending or forming steel pipe or tubing easily. Minimum wall thickness of 3mm is required otherwise kinking can occur. NOT suitable for automotive exhaust style tubing. Can be used vertically or horizontally. Unit and formers supplied in separate packaging.

Features:

• High grade steel frame, painted enamel finish for corrosion resistance
• 6 position adjustable top roller guides
• Heavy duty dual return springs for easy returns and resets

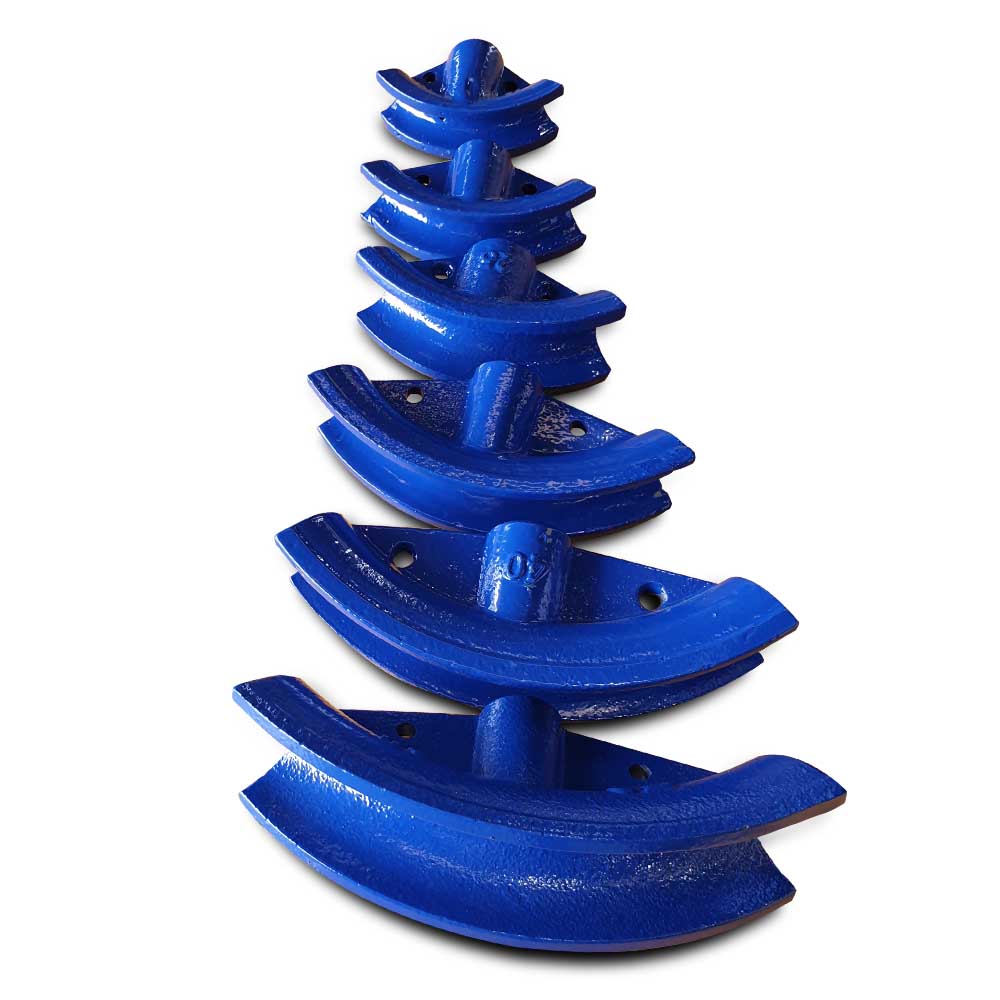

• 6 extra deep formers included, individually size stamped (metric and imperial)

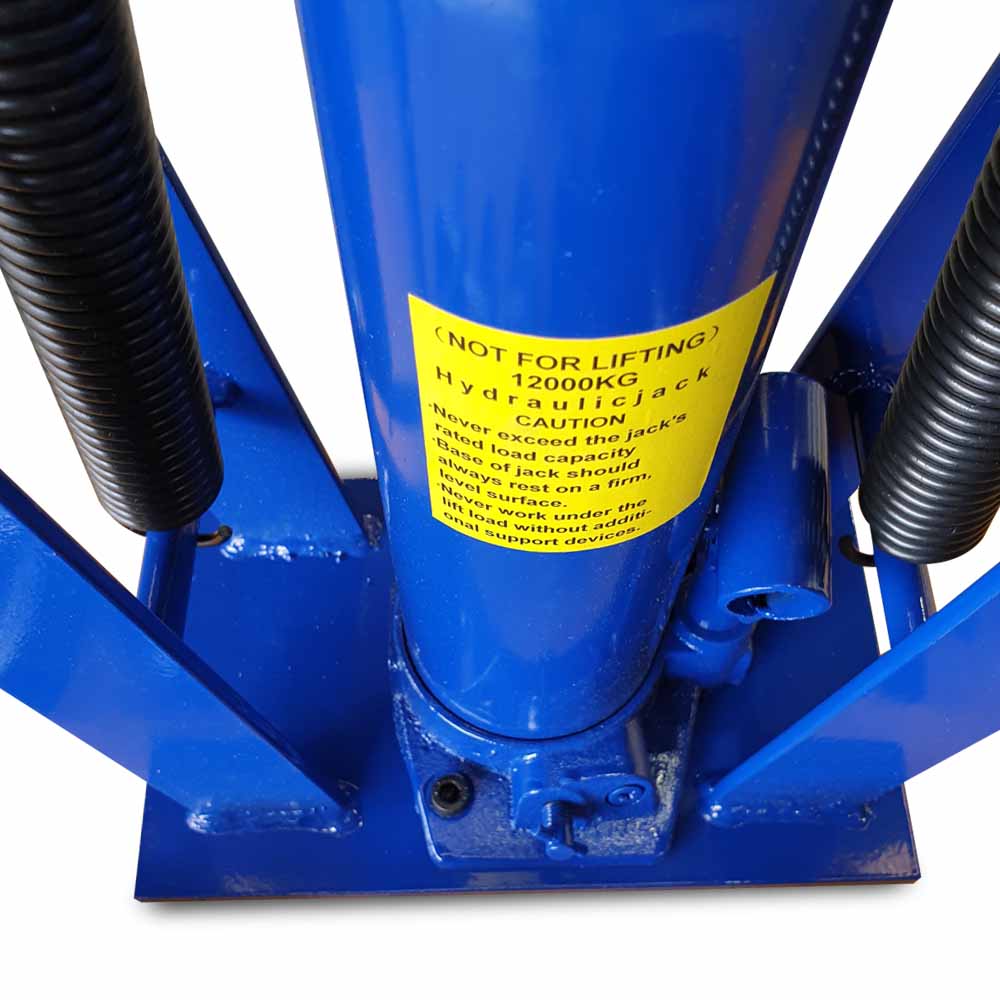

• Long stroke ram for 1-man operation

Specifications:

• Former sizes: 1/2” (13mm), 3/4” (19mm), 1” (25mm), 11/4” (32mm), 11/2” (40mm), 2” (50mm)
• Packaged Dimensions(formers) (L x W x H): 350 x 300 x 120mm
• Weight(net)(formers): 12 kg
• Ram Capacity: 12000 Kg
• Maximum Tubing Diameter (OD): 2” (50mm)
• Packaged Dimensions(unit) (L x W x H): 650 x 560 x 175mm
• Weight(net) (unit): 40 kg
