Grip 43036 100mm 230kg Poly Moulded Cast Iron Swivel Castor

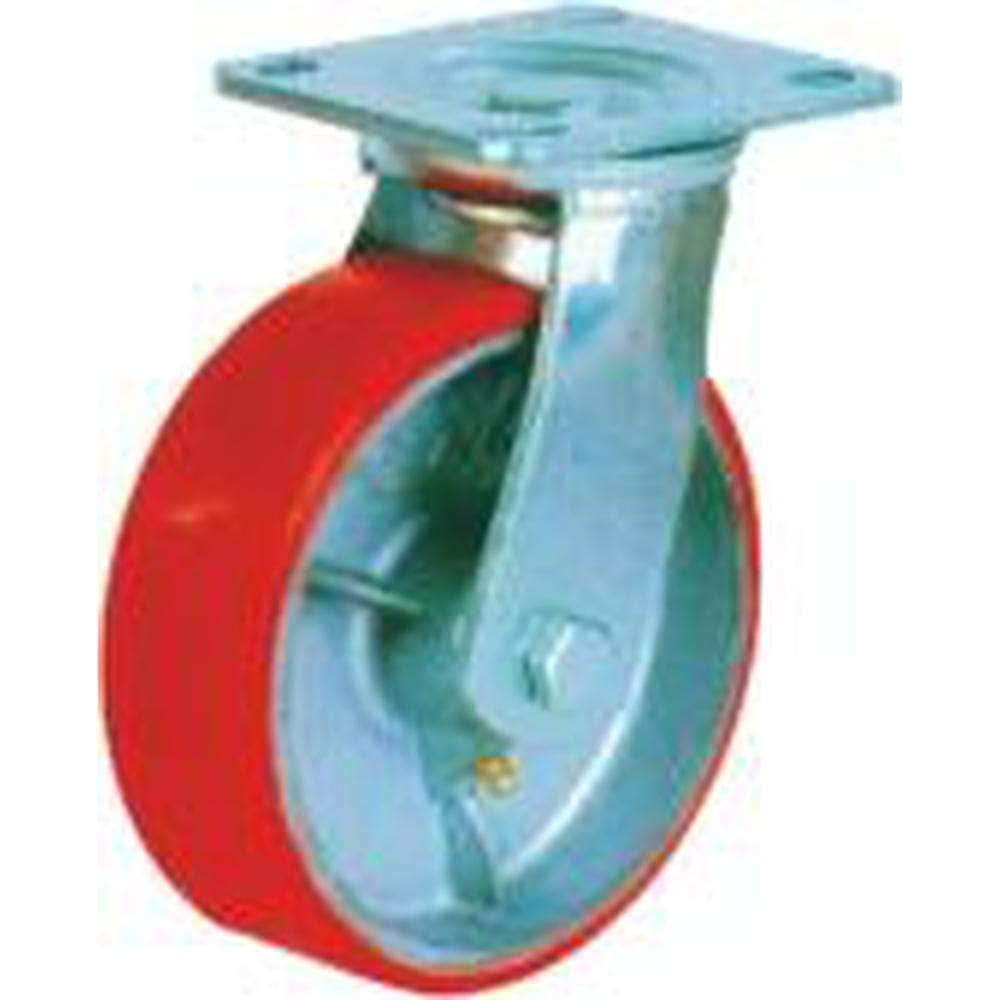

The Grip 100mm Poly Moulded Cast Iron Swivel Castor is part of the GRIP Industrial Red Series Castor Wheels, engineered to deliver high load capacity, smooth rolling performance, and long service life in demanding industrial environments.

Constructed with galvanised fabricated steel componentry, this swivel castor features a cast iron core wheel with a moulded polyurethane (PU) outer tread, combining exceptional strength with reduced noise and improved floor protection. The wheel is fitted with a roller bearing and grease nipple, allowing smooth operation under load and easy ongoing maintenance.

Designed using precision ball, roller, and tapered roller bearing technology, the Grip 43036 castor provides stable swivelling action and dependable performance. It is ideal for industrial trolleys, carts, machinery, and mobile equipment where durability, control, and surface protection are essential.

Key Features:

• 100mm industrial swivel castor

• Part of the Grip Industrial Red Series

• Poly moulded polyurethane tread for smooth, quiet movement

• Cast iron core wheel for superior strength

• Roller bearing with grease nipple for long service life

• Galvanised fabricated steel frame for corrosion resistance

• Suitable for industrial and commercial applications

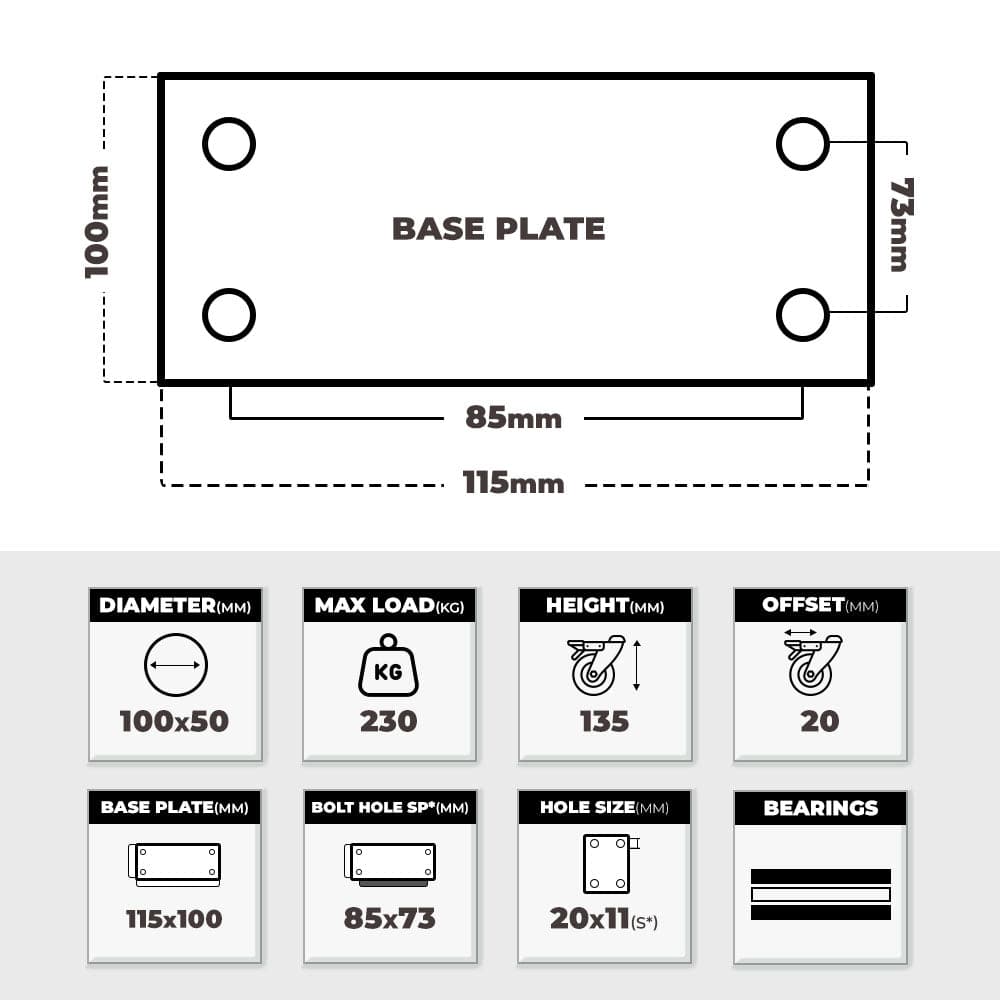

Specifications:

• Wheel Diameter: 100 × 50mm

• Maximum Load Capacity: 230kg

• Overall Height: 135mm

• Offset: 20mm

• Base Plate Size: 115 × 100mm

• Bolt Hole Spacing: 85 × 73mm

• Bolt Hole Size: 20 × 11mm (slotted holes)
