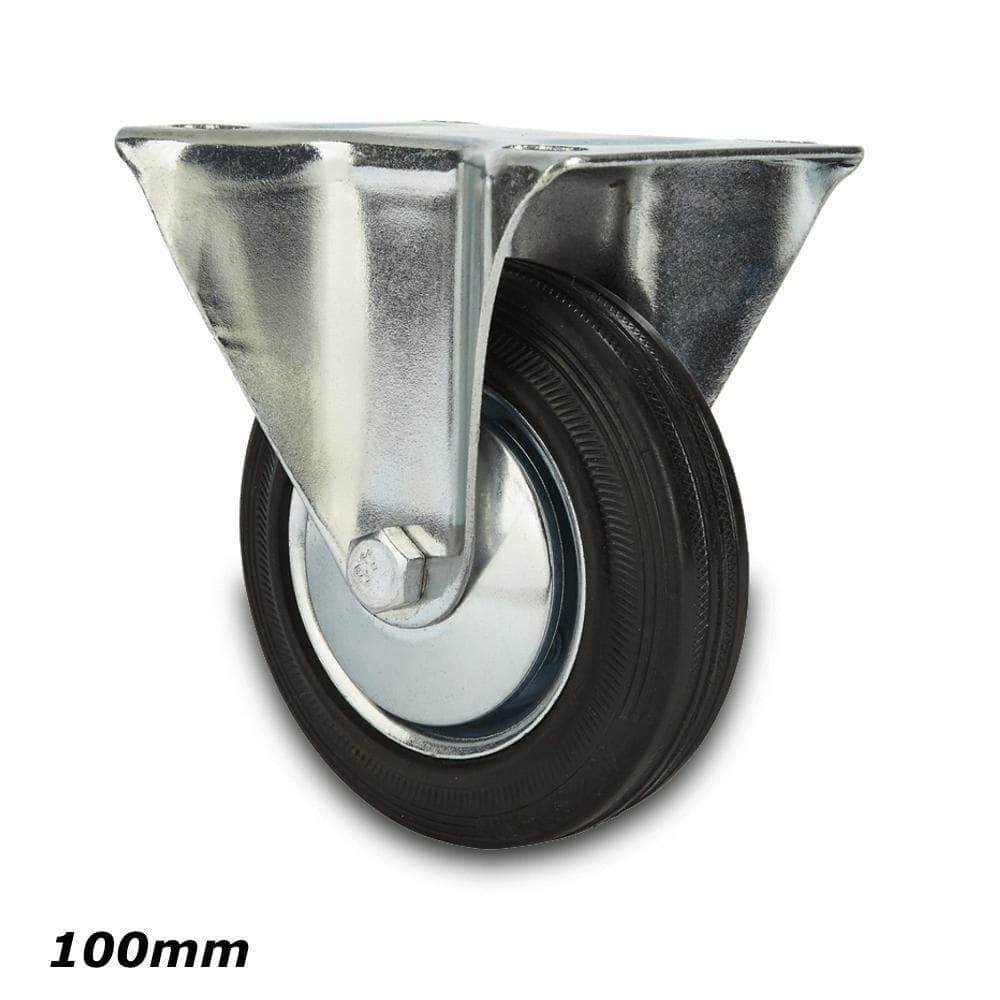

Grip 43024 100mm 70kg Rubber Moulded Steel Core Fixed Castor

The Grip 43024 100mm Rubber Moulded Steel Core Fixed Castor is designed for applications requiring straight-line movement and load stability. Part of the Grip Industrial Black Series, this castor is suited for light industrial, commercial and general equipment use within its rated capacity.

This model features a black rubber moulded wheel with a steel core centre, supported by roller bearings. The housing is manufactured from galvanised plated pressed steel componentry.

The fixed (rigid) design allows forward and backward movement only, making it suitable for installations where directional control is managed by swivel castors positioned elsewhere on the equipment.

Key Features:

• 100mm fixed (rigid) castor
• Rubber moulded wheel with steel core
• Galvanised plated pressed steel housing
• Roller bearing wheel design
• Part of Grip Industrial Black Series

Specifications:

• Model: 43024
• Brand: Grip
• Series: Industrial Black Series
• Wheel Diameter: 100mm
• Wheel Width: 30mm
• Maximum Load Capacity: 70kg (per castor)
• Overall Height: 121.5mm

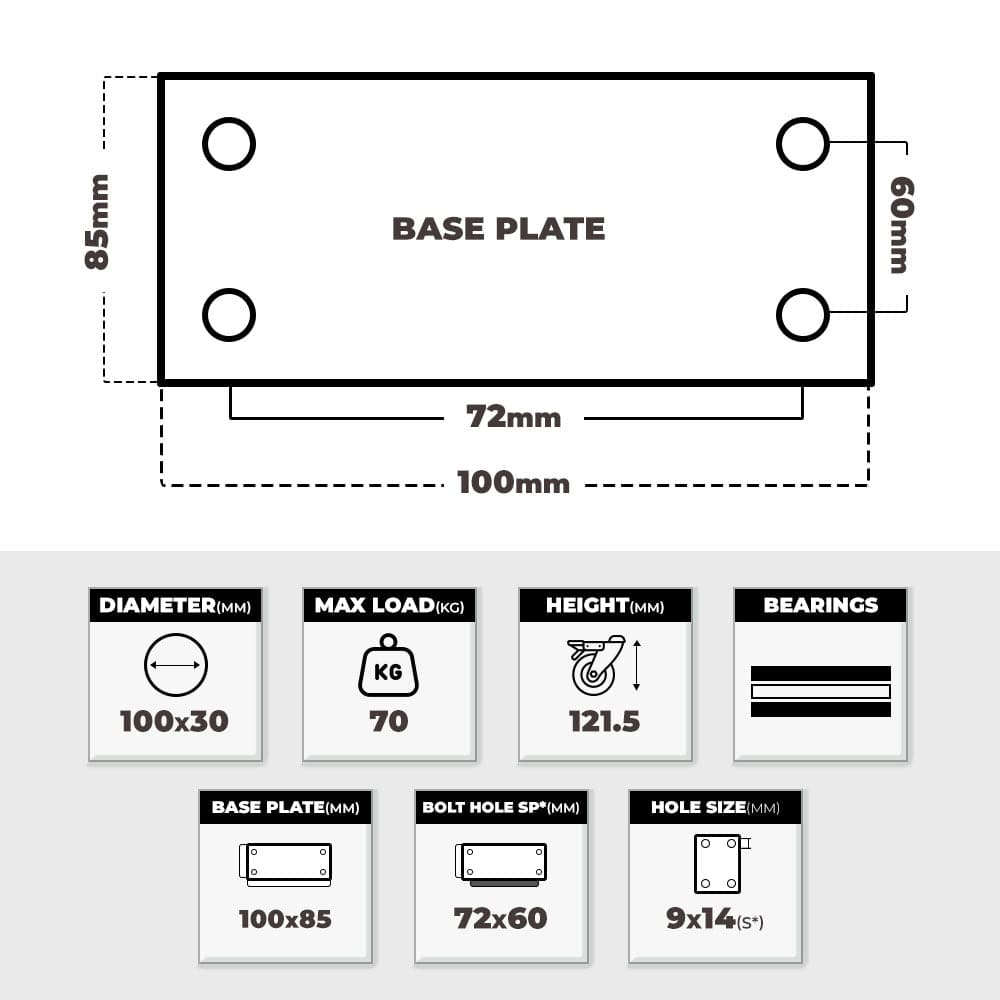

• Base Plate Size: 100 x 85mm
• Bolt Hole Spacing: 72 x 60mm
• Bolt Hole Size: 9 x 14mm (Slotted)
