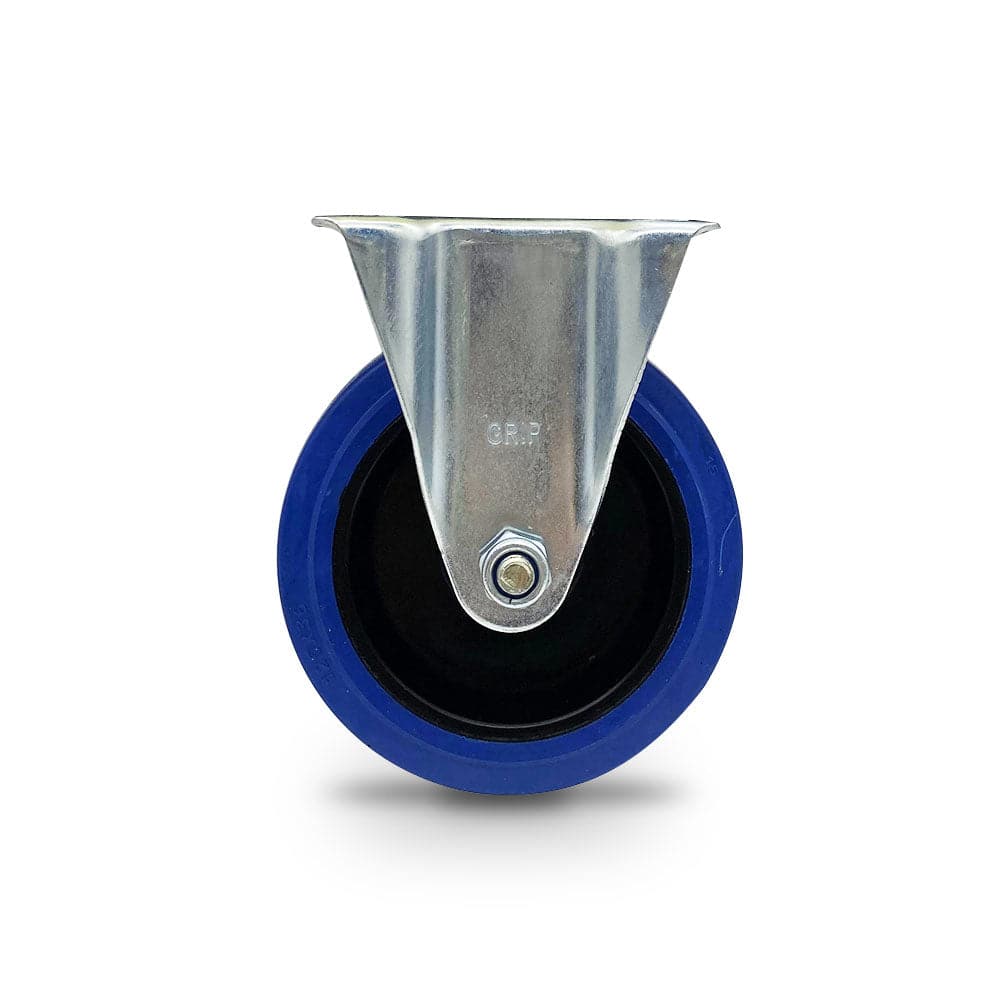

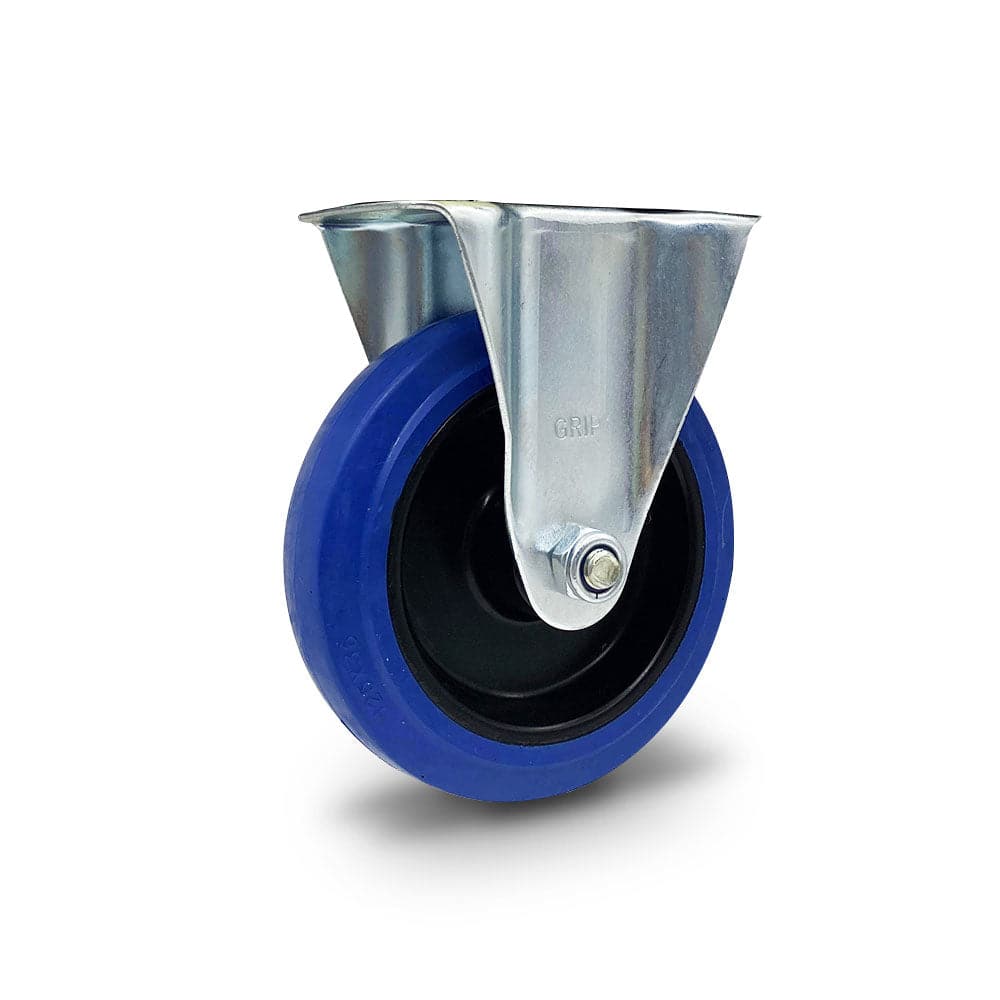

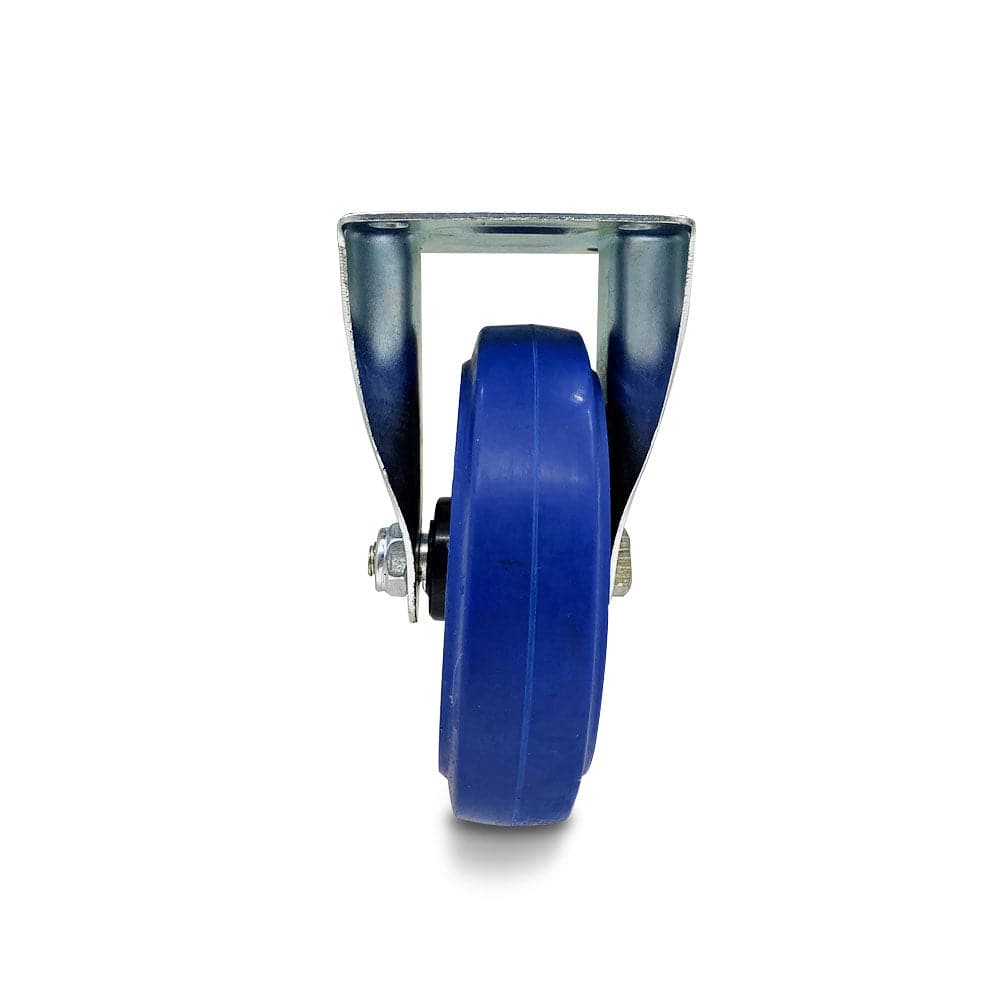

Grip 43001 100mm 100kg Blue Elastic Rubber Nylon Core Fixed Castor
The Grip 43001 100mm Blue Elastic Rubber Nylon Core Fixed Castor is designed for applications requiring straight-line movement and load stability. Part of the Grip Industrial Blue Series – Blue Elastic Rubber range, this castor is suited for institutional, commercial and general equipment use within its rated capacity.
This model features a blue elastic rubber outer wheel (non-marking) with a nylon core centre. The housing is manufactured from galvanised plated pressed steel componentry, and the wheel assembly incorporates roller bearing technology.
The fixed (rigid) design allows forward and backward movement only, making it suitable for installations where directional control is managed by swivel castors positioned elsewhere on the equipment.
Key Features:
- 100mm fixed (rigid) castor
- Blue elastic rubber outer wheel (non-marking)
- Nylon core centre
- Galvanised plated pressed steel housing
- Roller bearing wheel design
- Part of Grip Industrial Blue Series – Blue Elastic Rubber
Specifications:
- Model: 43001
- Brand: Grip
- Series: Industrial Blue – Blue Elastic Rubber
- Wheel Diameter: 100mm
- Wheel Width: 32mm
- Maximum Load Capacity: 100kg (per castor)
- Overall Height: 121.5mm

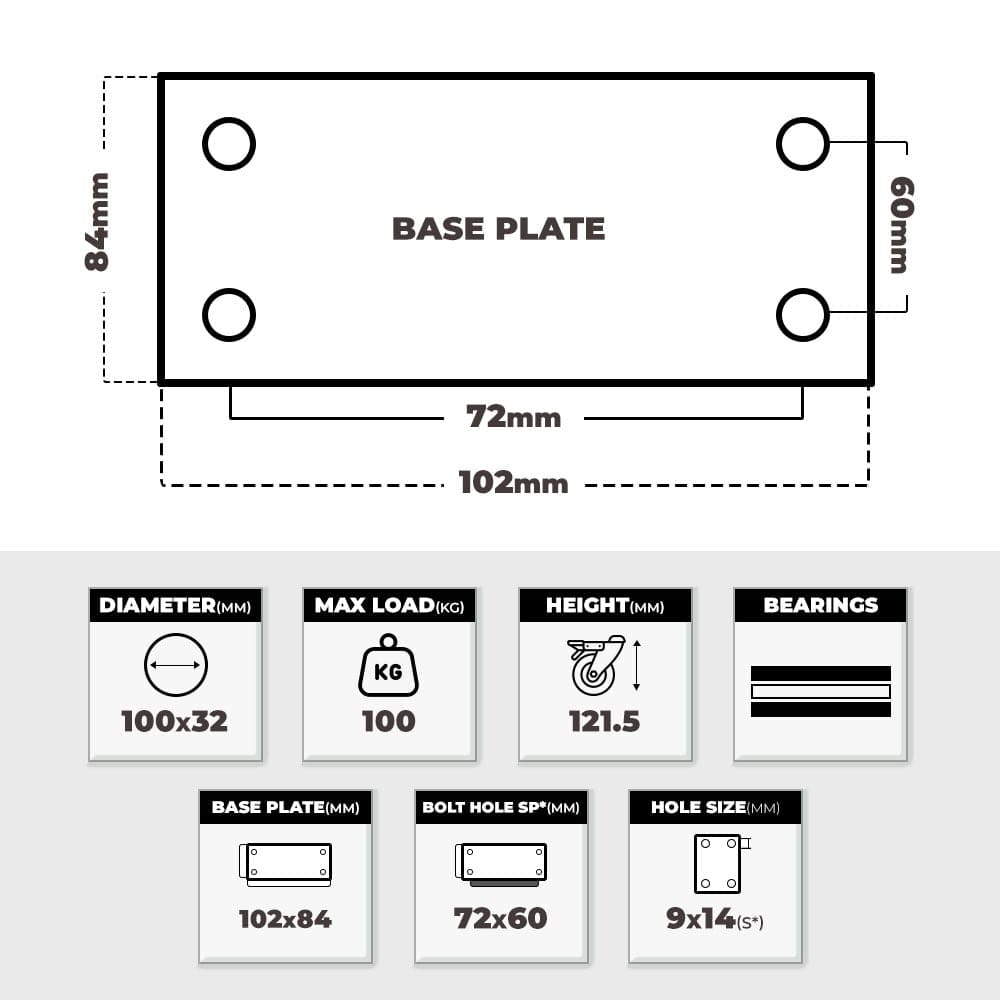

- Base Plate Size: 102 x 84mm
- Bolt Hole Spacing: 72 x 60mm
- Bolt Hole Size: 9 x 14mm (Slotted)
