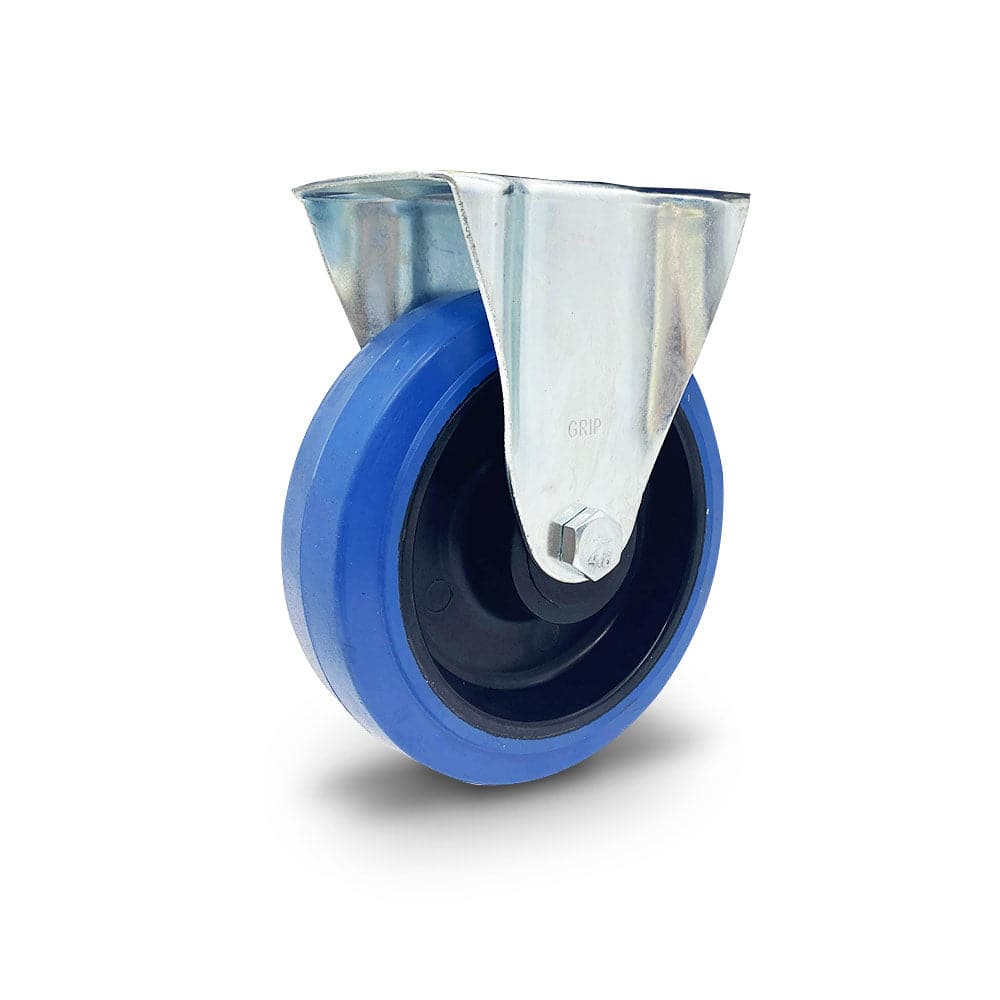

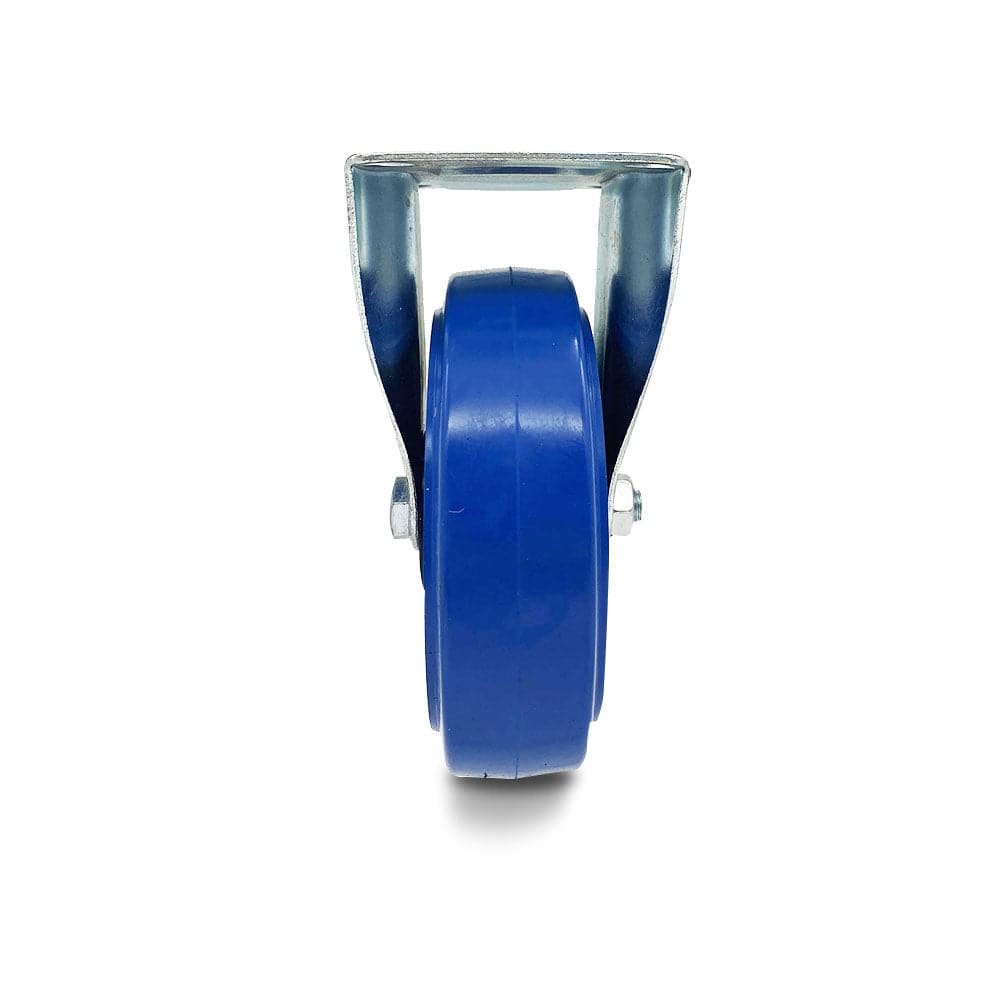

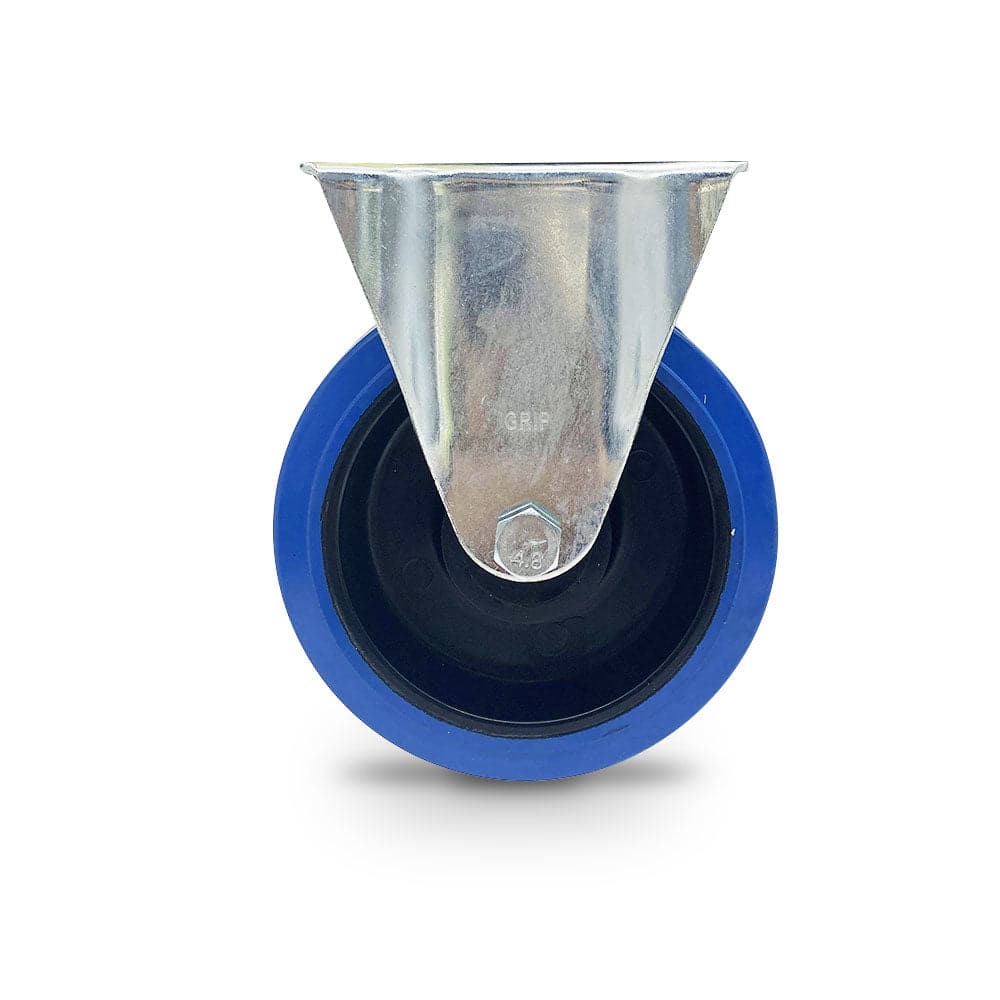

Grip 42063 160mm 200kg Blue Elastic Rubber Fixed Castor

The Grip 42063 160mm Blue Elastic Rubber Fixed Castor is designed for applications requiring straight-line movement and load stability. Part of the Grip Industrial Blue Series, this castor is suited for institutional, commercial and equipment transport applications within its rated capacity.

This model features a blue elastic rubber outer wheel (non-marking) with a nylon core centre. The housing is manufactured from galvanised plated pressed steel componentry. The wheel assembly incorporates roller bearing technology.

The fixed (rigid) design allows forward and backward movement only, making it suitable for installations where directional control is managed by swivel castors fitted elsewhere on the equipment.

Key Features:

• 160mm fixed (rigid) castor
• Blue elastic rubber outer wheel (non-marking)
• Nylon core centre
• Galvanised plated pressed steel housing
• Roller bearing wheel design
• Part of Grip Industrial Blue Series

Specifications:

• Model: 42063
• Brand: Grip
• Series: Industrial Blue Series
• Wheel Diameter: 160mm
• Wheel Width: 50mm
• Maximum Load Capacity: 200kg (per castor)
• Overall Height: 192mm

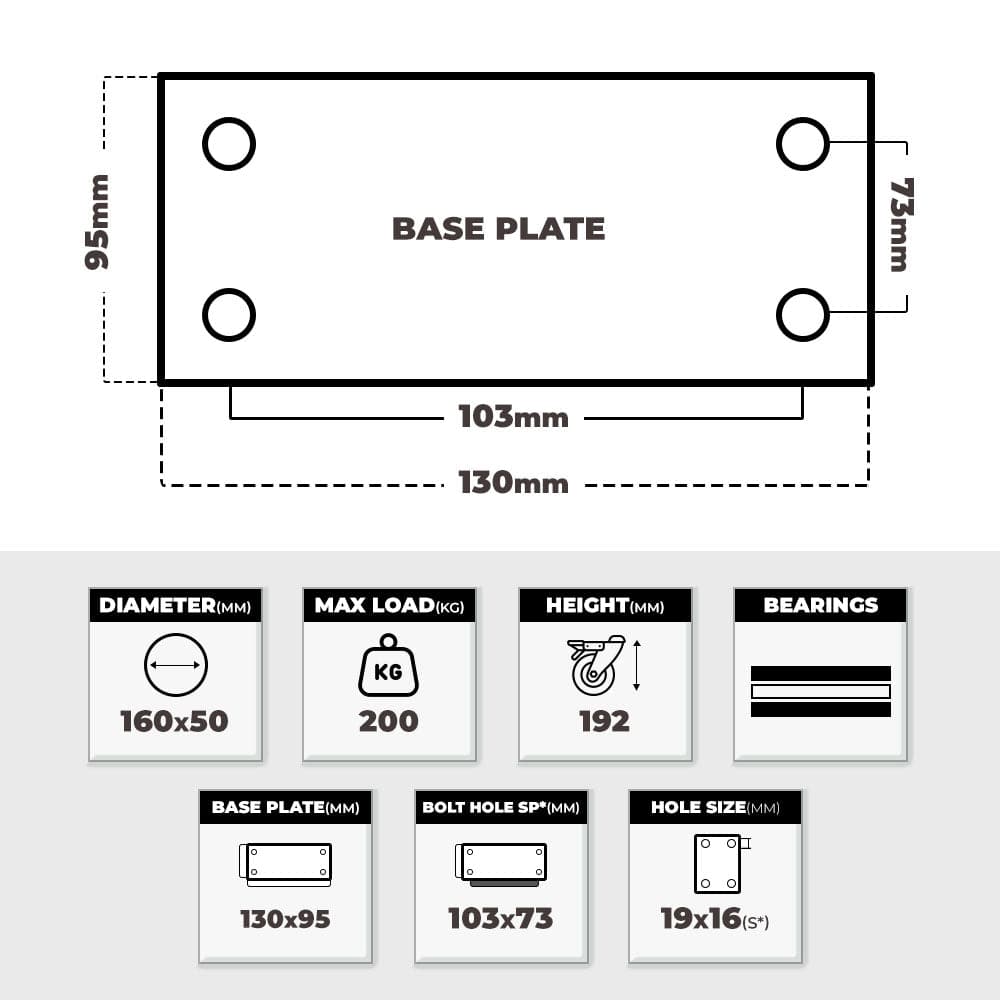

• Base Plate Size: 130 x 95mm
• Bolt Hole Spacing: 103 x 73mm
• Bolt Hole Size: 19 x 16mm (Slotted)
