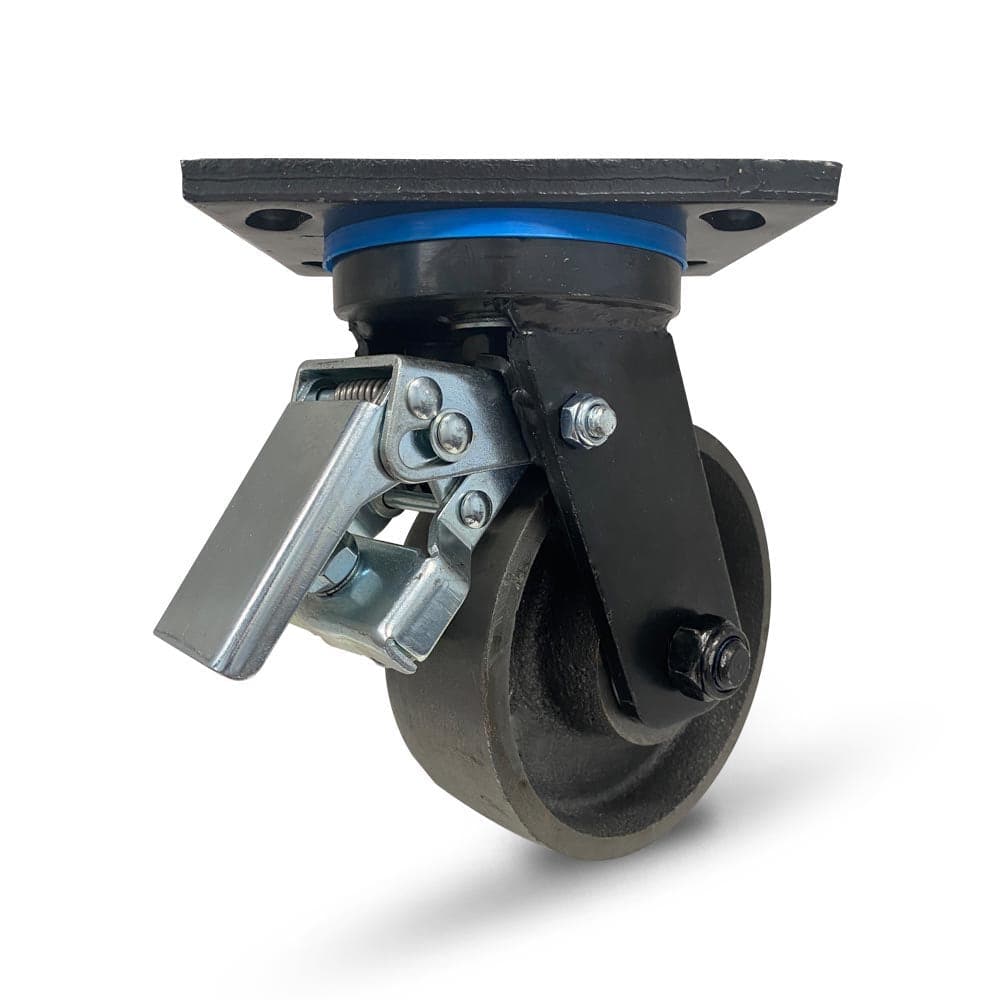

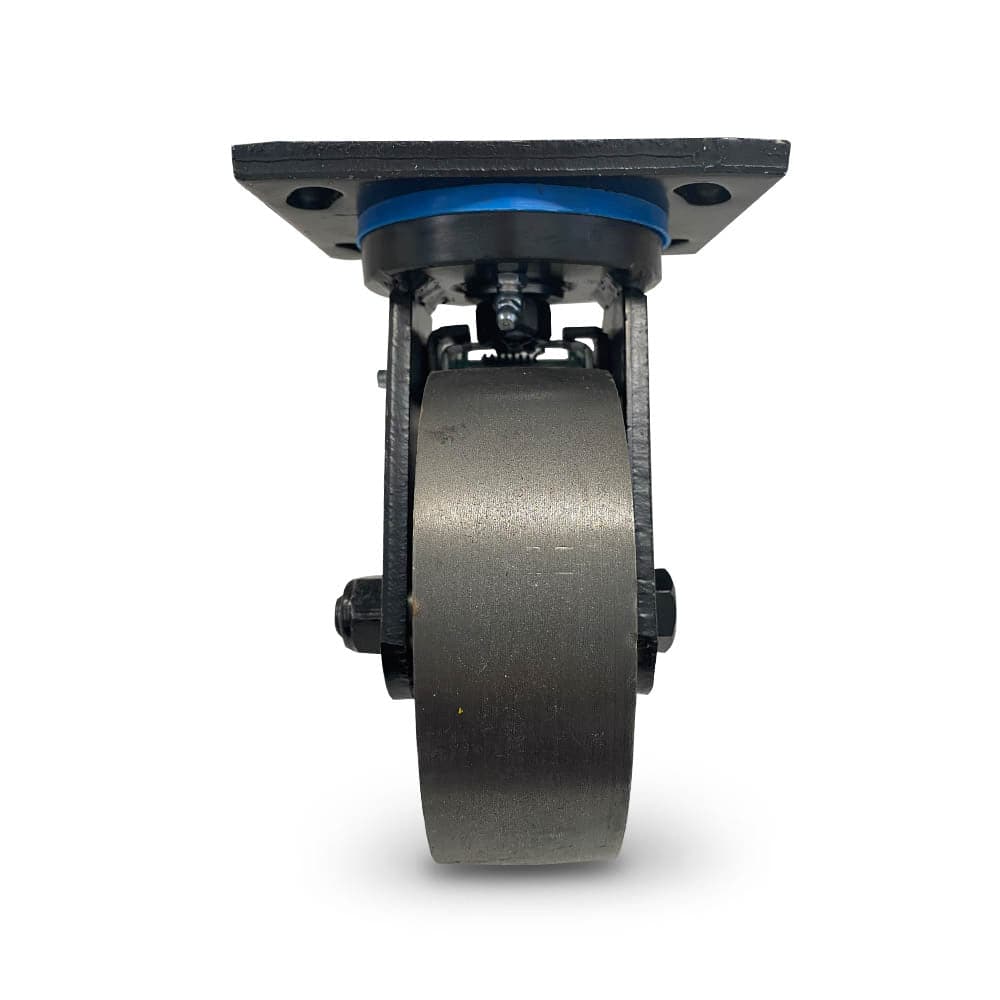

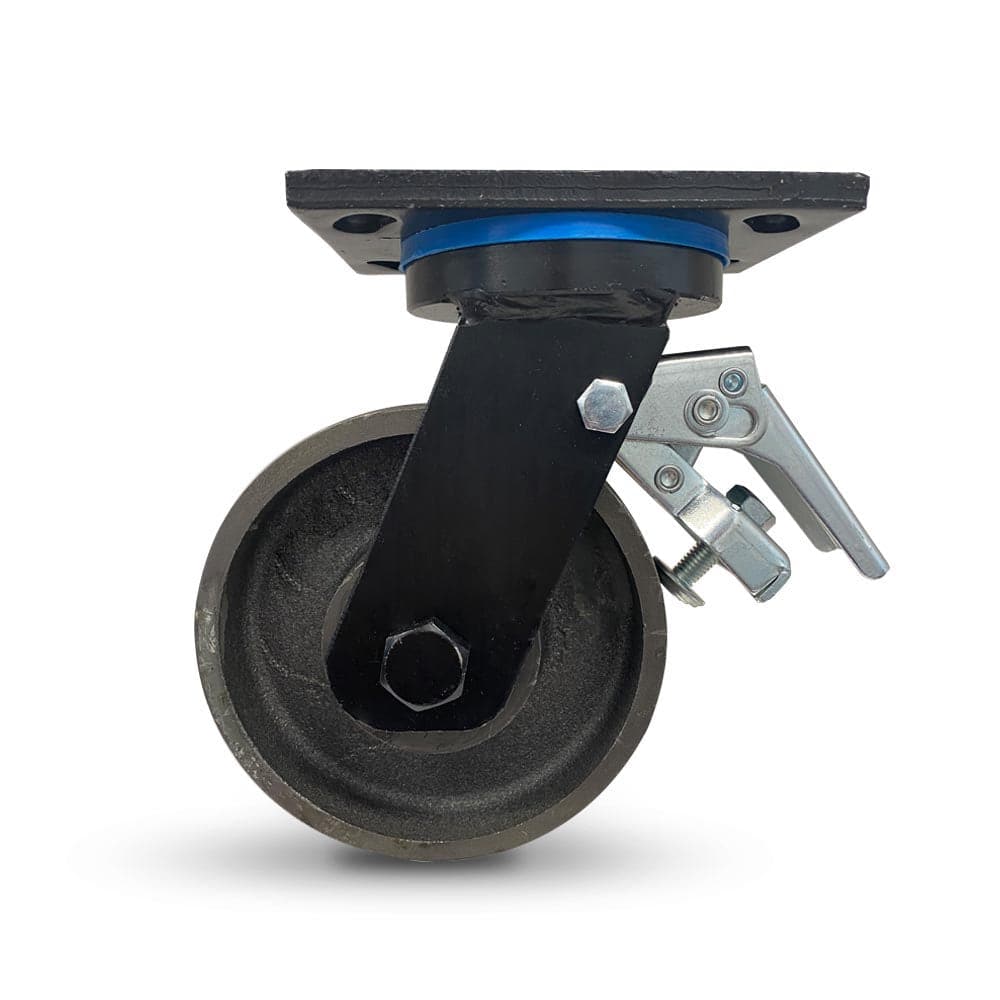

Grip 41968 200mm 1600kg Heavy Duty Cast Iron Swivel Castor with Brake
by Grip
$159.00
Estimated Dispatch Time: 3-10 days
i
Contact us for an exact ETA. Subject to availability - T/C's apply
GRIP INDUSTRIAL AAA GREY SERIES
EXTREME HEAVY DUTY fabricated steel componentry with black zinc finish for corrosion resistance. Full cast iron, double ball bearing core centered wheel. Suitable for use on automotive assembly lines, aviation trolleys and in production manufacturing plants.
Specifications:
- Diameter: 200x63mm
- Load Cap.: 1600kg
- Height: 264mm
- Offset: 59.5

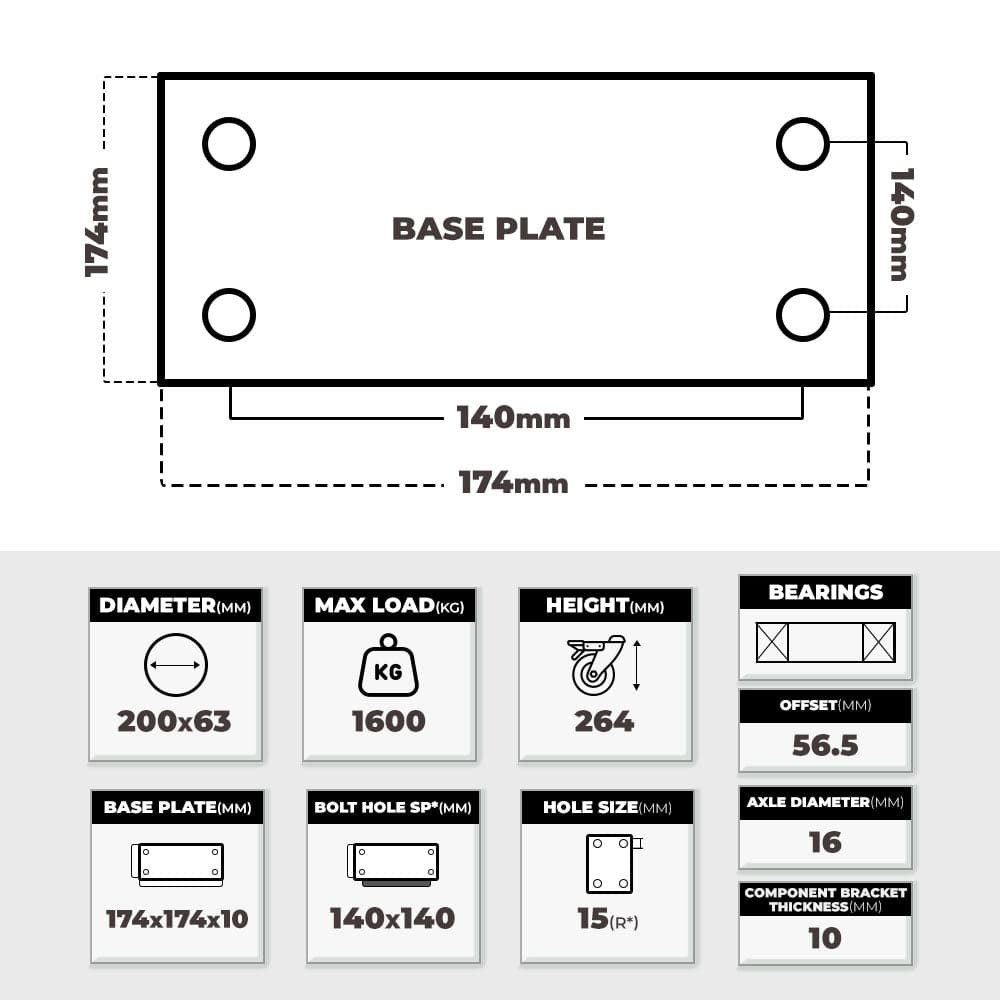

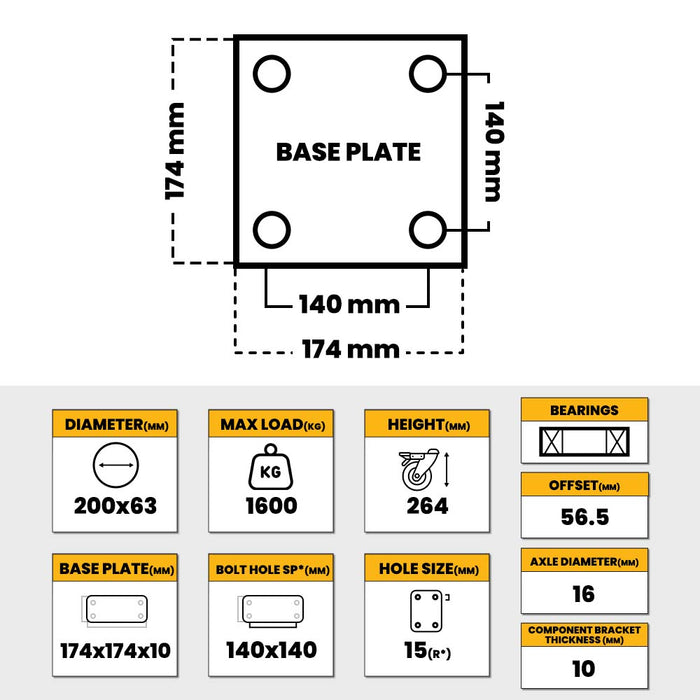

- Base Plate: 174x174x10mm
- Bolt Hole Spacing: 140x140mm
- Hole Size: 15
- Axle Diameter: 16
- Component Bracket Thickness: 10mm
