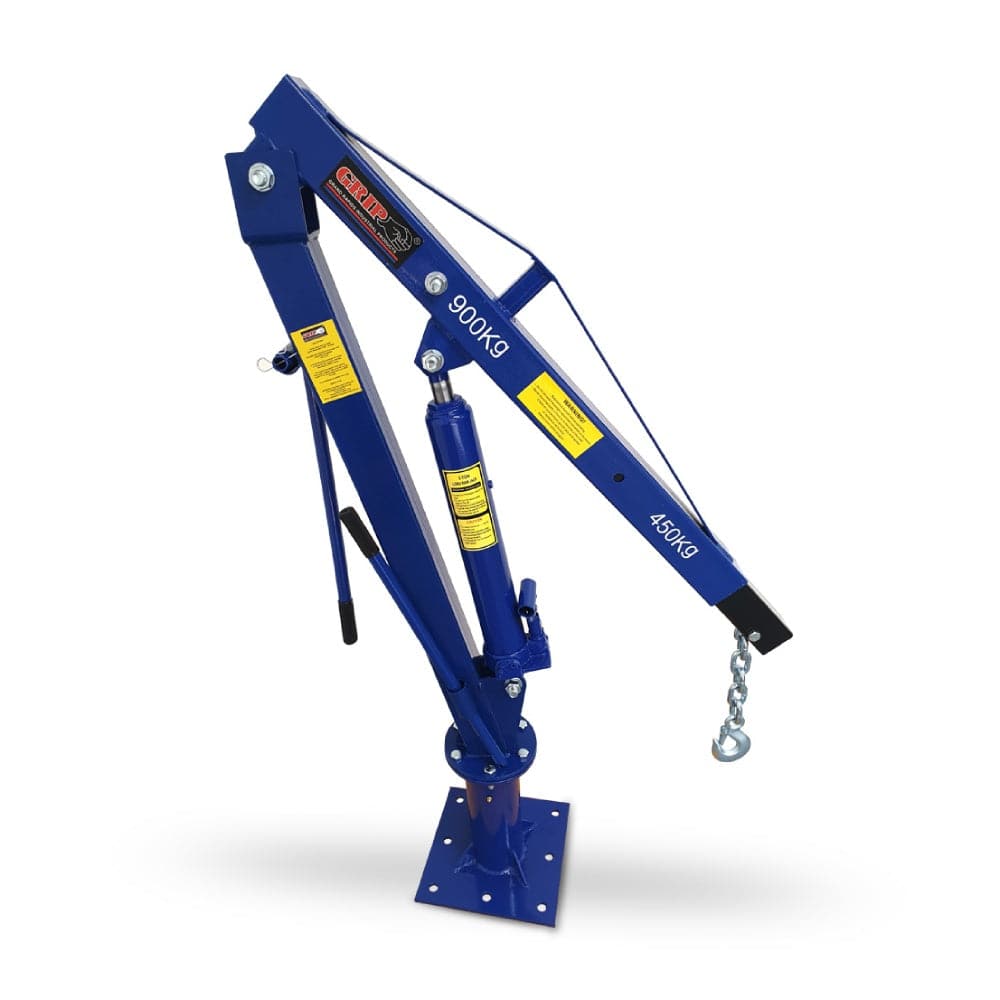

Grip 18084 900kg Heavy Duty Swivel Ute Lifting Crane
by Grip
$299.00
Estimated Dispatch Time: 3-10 days
i
Contact us for an exact ETA. Subject to availability - T/C's apply
To safely facilitate the lifting and movement of heavy component objects. Fixed mountable base, but with a 360°swivel movement.
Features:
- Heavy duty, seam welded construction.
- Convenient single stage 3 tonne hydraulic long stroke lifting ram.
- 2 position adjustable boom.
- Full 360° rotation.
- Hardened, rated lifting chain and hook.
- Black baked enamel finish for corrosion resistance.
- Australian Standard compliance.
- Industrial style Ute Crane
Specifications:
- Maximum working capacity 900kg.
- 2 position adjustable boom 900kg and 450kg.
- Hardened, rated lifting chain and hook, with grade 8.8 fitted bolts.
- N.B. Grade 8.8 bolts recommended for mounting of base.
- AS1418.8 Australian Standards compliance.
- Boom working range 870 - 1290mm.
- Arm lifting range 0 - 2015mm.
- Base dimensions (L x W) 270 x 270mm.
- Weight (nett) 56kg comprising of
- 2 x cartons (L x W x H) 1130 × 280 × 180mm, 37kg and
- 330 x 320 x 340mm, 19kg.
