Grip 41963 200mm 1600kg Heavy Duty Cast Iron Fixed Castor

The Grip Heavy Duty Cast Iron Fixed Castor is engineered for extreme load-bearing applications where strength, stability, and long-term durability are non-negotiable. Part of the GRIP Industrial AAA Grey Series, this castor is purpose-built for the most demanding industrial environments.

Constructed with extreme heavy-duty fabricated steel componentry, the castor features a black zinc finish that provides excellent corrosion resistance in harsh working conditions. The full cast iron wheel is core-centred and fitted with a double ball bearing system, delivering smooth, controlled rolling performance under exceptionally high loads.

Designed as a fixed (rigid) castor, the Grip 41963 ensures straight-line stability, making it ideal for applications such as automotive assembly lines, aviation trolleys, heavy machinery, and production manufacturing plants. With an impressive 1600kg load capacity, this castor is built to handle continuous industrial use with confidence.

Key Features:

• Extreme heavy-duty fabricated steel bracket

• Black zinc finish for enhanced corrosion resistance

• Full cast iron wheel for maximum strength and wear resistance

• Double ball bearing core for smooth operation under heavy loads

• Fixed castor design for stability and straight-line movement

• Ideal for automotive, aviation, and heavy manufacturing environments

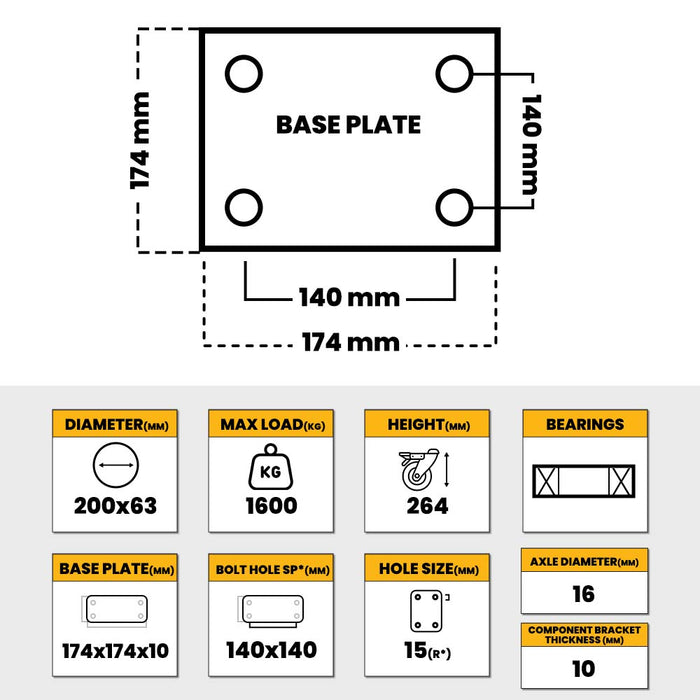

Specifications

• Wheel Diameter: 200 x 63 mm

• Load Capacity: 1600 kg

• Overall Height: 264 mm

• Base Plate Size: 174 x 174 x 10 mm

• Bolt Hole Spacing: 140 x 140 mm

• Bolt Hole Size: 15 mm (round)

• Axle Diameter: 16 mm

• Component Bracket Thickness: 10 mm
